Dt-swiss X12 Standard Conversion Kit For DT Swiss Hubs

Enables conversion to X12 thru-axle: the X12 conversion Kit by DT Swiss
There is no need for tedious conversion – after the axle has been installed once, only the end stops need to be changed. The axle is compatible with quick releases, 10 mm thru-axle and 12 mm thru-axle. For the DT-240s hubs (as of 2010 models), the black axle (type: 2) is already fitted as standard.
Models:Type: 1
Hub Compatibility: 180, 240s, 350, FR 440, FR 2350,Wheel Compatibility: XRC 1350, XR/X, XM/M, EXC/EX/EConvertible To: HR X-12 standard 12 x 142 mmBase Model: rear standardManufacturer Number: HWYXXX0002877C (end caps /RWS Thru Bolt/axle)
Type: 2
Hub Compatibility: 180, 240s, 340, 350, FR 440, Hügi 240Wheel Compatibility: R 23 Spline® DBConvertible To: HR X-12 standard 12 x 142 mmBase Model: rear standardManufacturer Number: HCCXXX00S2216S (X-12 axle)
Type: 3
Hub Compatibility: 180, 240s, 340, 350, FR 440, Hügi 240Wheel Compatibility: R 23 Spline® DBConvertible To: HR X-12 standard 12 x 142 mm, 12 x 157 mm, 12 x 197 mmBase Model: rear standardManufacturer Number: HCCXXX00S2216S (X-12 axle), HWGXXX0002193C (end caps)
Type: 4
Hub Compatibility: 180, 240s, 340, 350, FR 440, Hügi 240Wheel Compatibility: Tricon®, E 1900 SPLINE®, X 1900 SPLINE®, M 1900 SPLINE®Convertible To: X-12 Standard 12 x 142 mm, 12 x 157 mm, 12 x 197 mmBase Model: rear standardManufacturer Number: HWGXXX0002193C (end caps)Contents:Type 1:
1 x DT Swiss hub axle1 x DT Swiss RWS Thru Bolt axlesincl. end caps
Type 2:

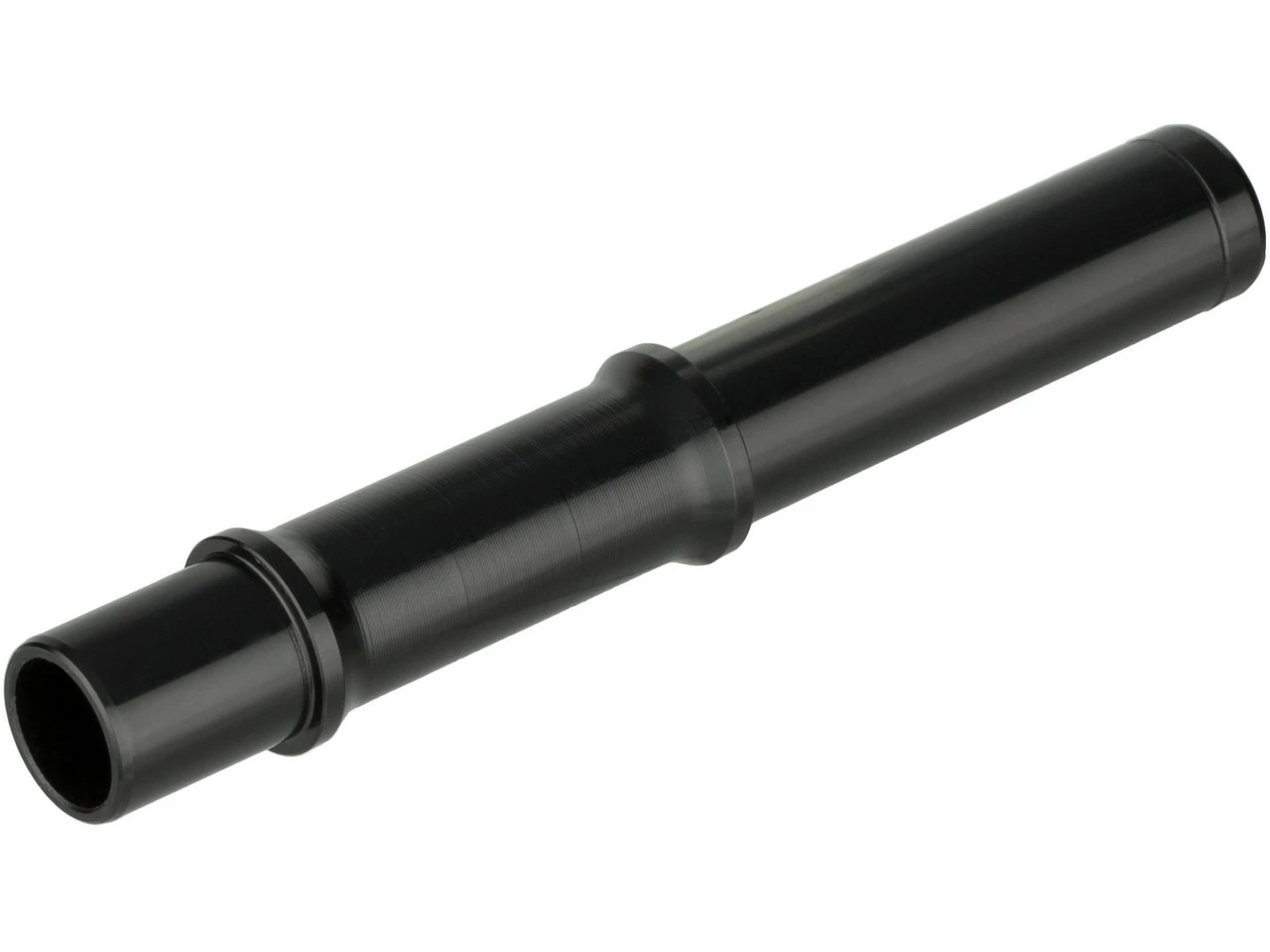

1 x DT Swiss hub axle
Type 3:
1 x DT Swiss hub axleincl. end caps
Type 4:

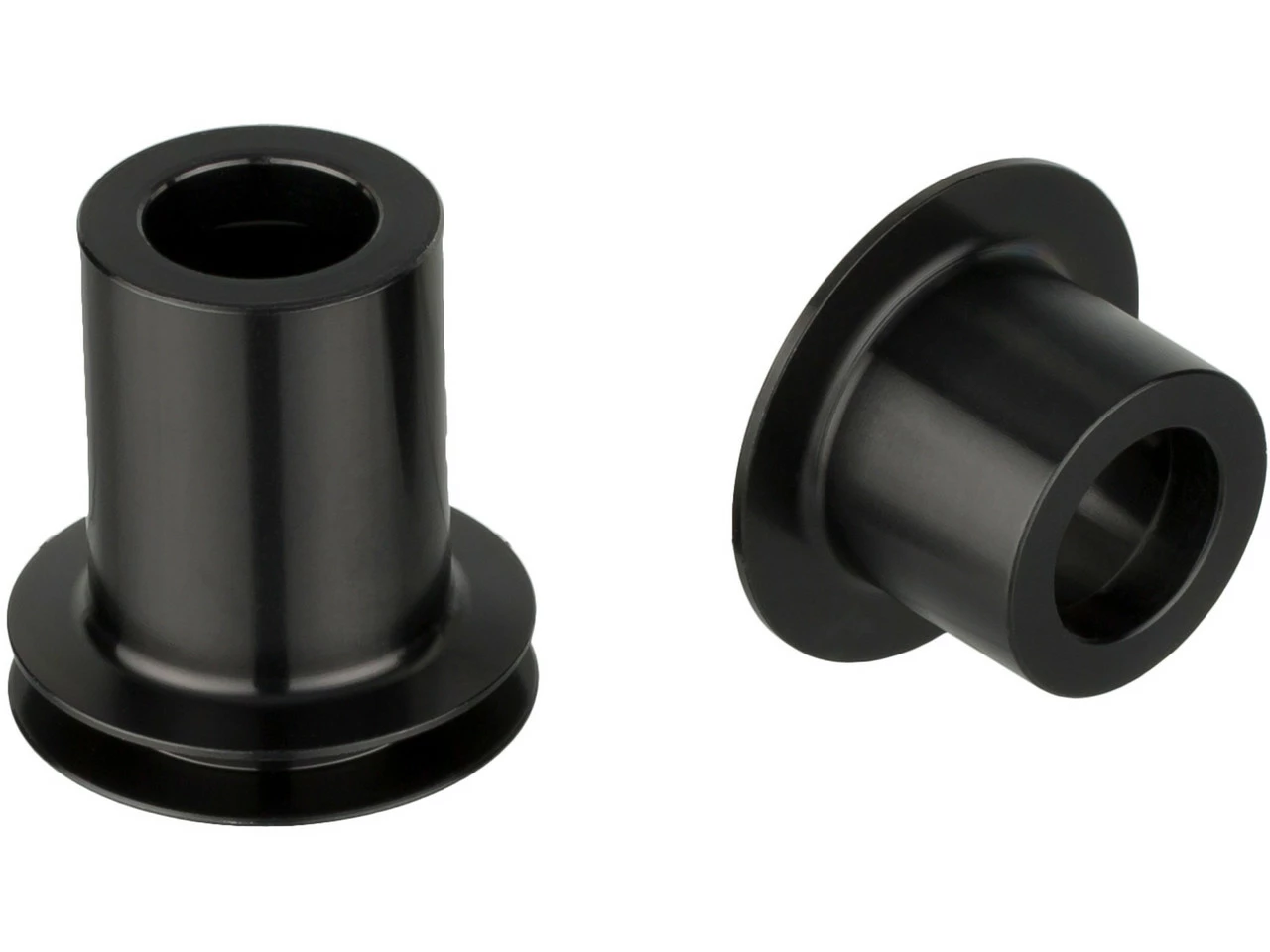

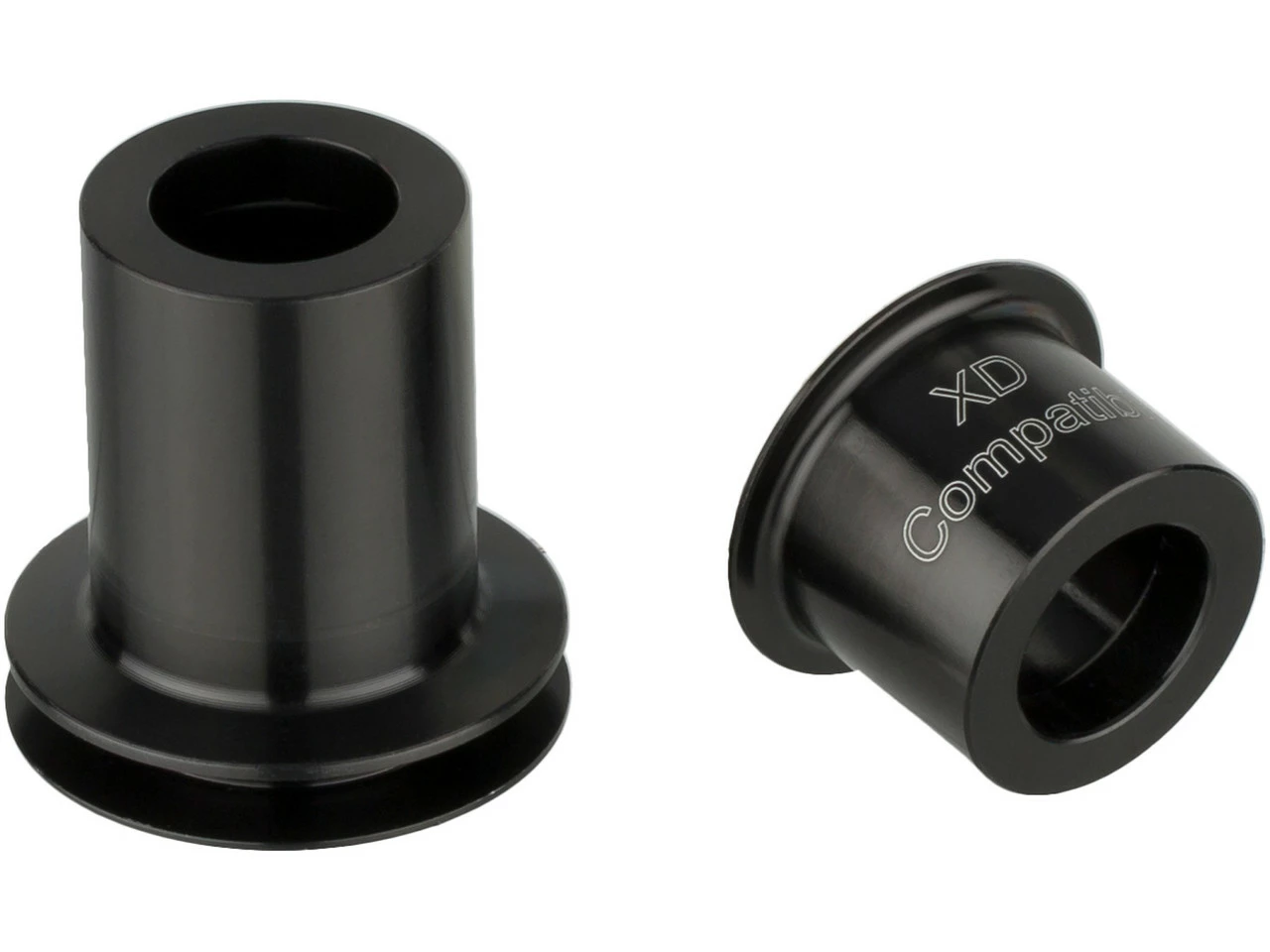

2 x DT Swiss end caps
