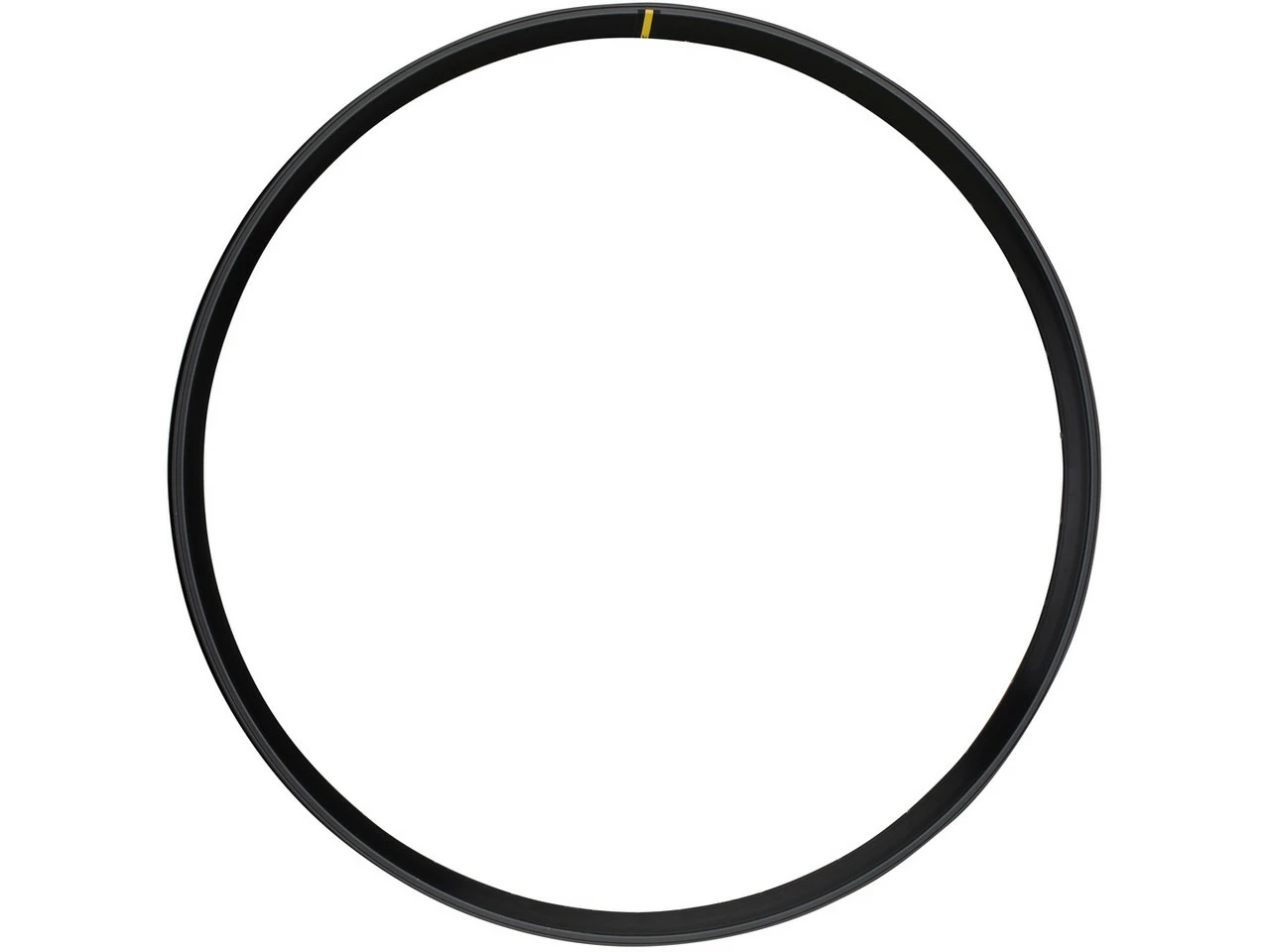

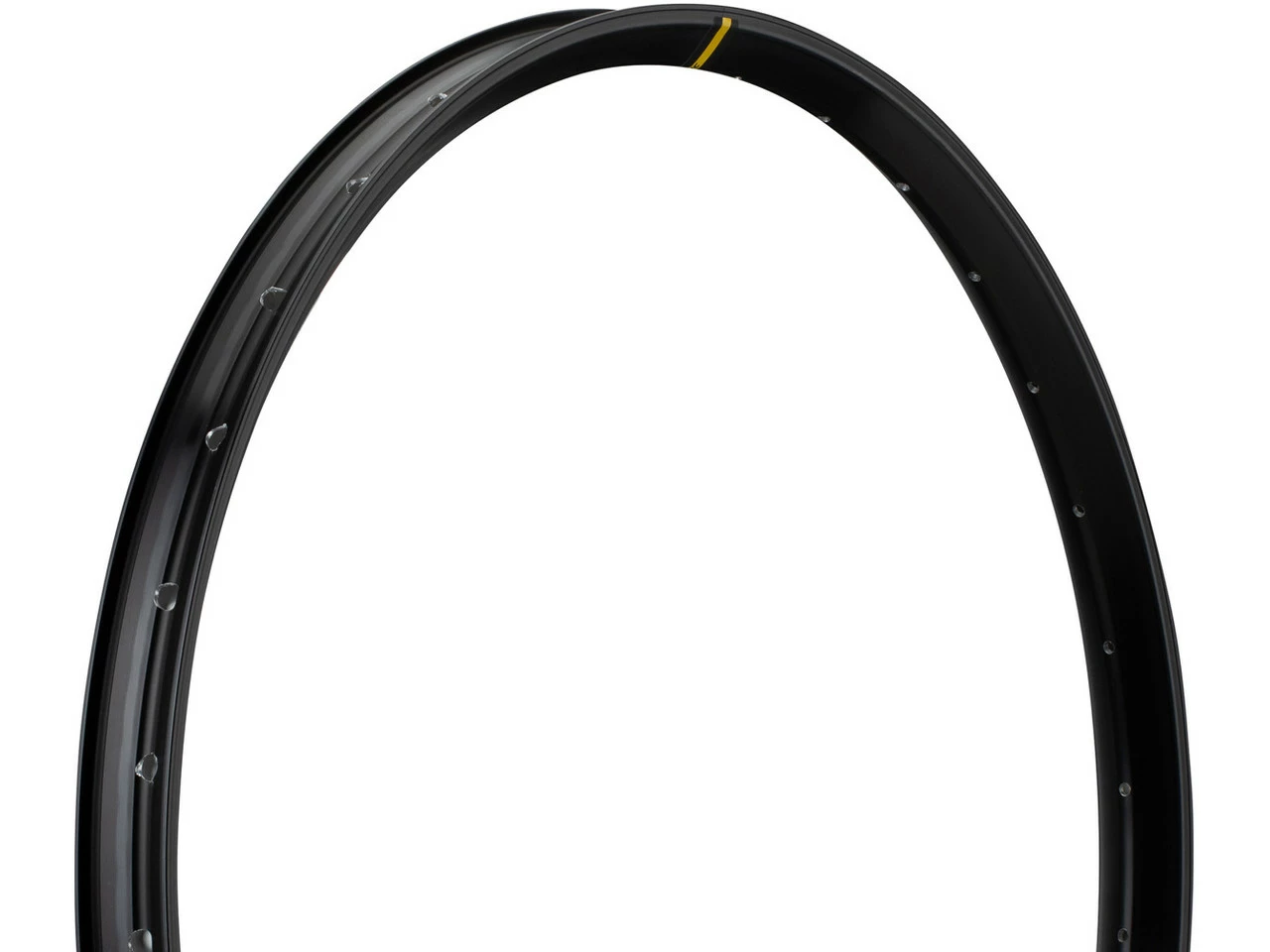

Mavic E-XM 435 Disc 27.5″ Rim

The E-XM 435 Disc 27.5″ rim by Mavic – extra wide, for E-MTBs
The Mavic E-XM 435 Disc rim – only available in 27.5″ – is specially designed for E-trail bikes and can be ridden with extra wide tyres. It has an internal width of 35 mm, so that plus tyres are no problem. The E-XM 435 uses the sleeve process, i.e. a shaped sleeve is pressed evenly into both ends of the rim to join them together. This aluminium rim has no eyelets and is of course tubeless ready.
Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.
Specifications:Application:All MountainWheel Size:27.5″ (650B)Tyre Type:clincher tyreNumber of Spokes:28, 32Brake Type:discTubeless System:Tubeless ReadyTechnical Information:Dimensions (ETRTO):35-584Inner Width:35 mmOuter Width:40 mmDepth:21.15 mmERD:558 mm (rim base diameter)Valve Hole Diameter:SV/Presta (6.5 mm)Rim Material:aluminium (6106)Approved For:Recommended Tyre Width:2.5″ – 3.2″Features:especially for E-MTBsfor plus tyreslugged rim joint (sleeve method)not eyeletedanodisedUST tubelessManufacturer Numbers:28 hole:J395012832 hole:J3950132Contents:1 x Mavic E-XM 435 rim
