Shimano Anti-Rotation Washers For 5-/ 7-/8-/11-speed Internally Geared Hubs

Shimano Anti-Rotation Washers for 5-/ 7-/8-/11-speed internally geared hubs for different dropouts
Shimano anti-rotation washers for internally geared hubs are required to install 5-, 7-, 8- and 11-speed internally geared hubs and serve as anti-rotation protection. There are different versions depending on the frame dropouts (horizontal, semi-horizontal, vertical) and mounting position (left, right). The different colours help to differentiate the washers.
Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.
Models:There are 5 types of dropouts: horizontal 0°, semi-horizontal with 20° or 38° opening angle and vertical with 90° or 60° opening angle. For each model, ” Use” indicates the type of dropout where the washer is required.

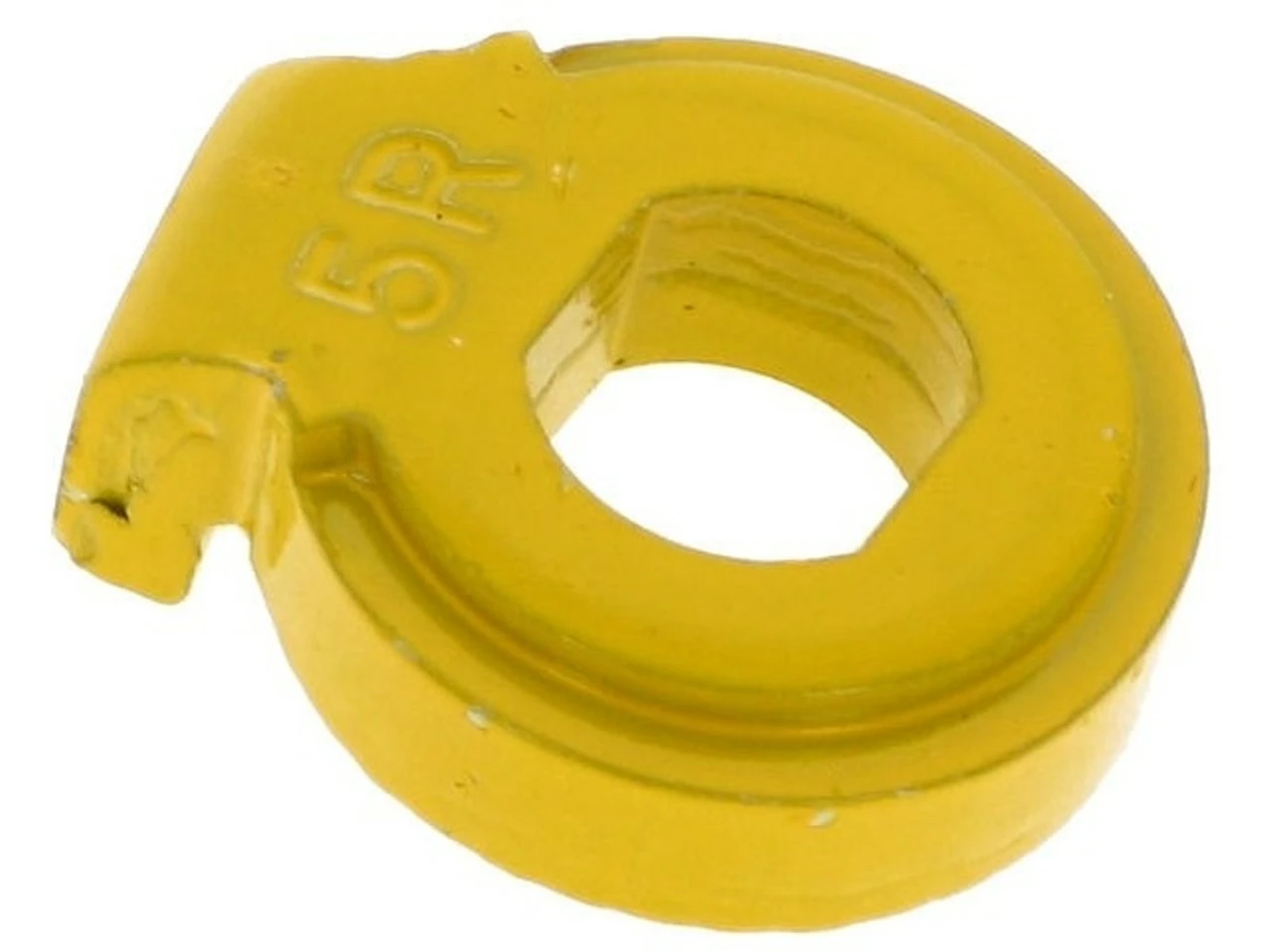

5R / yellow:
Use:horizontal 0°, semi-horizontal 20°Position:rightCompatibility:SG-8R20, SG-4R40, SG-5R30, SG-5R30-BT, SG-C6060, SG-C6011, SG-C6001, SG-C6061, SG-C7000-5, SG-C7002-5CD, SG-S7001-8, SG-C3001Manufacturer Number:Y-33Z20500
5L / brown:
Use:horizontal 0°, semi-horizontal 20°Position:leftCompatibility:SG-8R20, SG-4R40, SG-5R30, SG-5R30-BT, SG-C6060, SG-C6011, SG-C6001, SG-C6061, SG-C7000-5, SG-C7002-5CD, SG-S7001-8, SG-C3001Manufacturer Number:Y-33M39510
6R / silver:
Use:horizontal 0°Position:rightCompatibility:SG-8R20, SG-4R40, SG-5R30, SG-5R30-BT, SG-C6060, SG-C6011, SG-C6001, SG-C6061, SG-C7000-5, SG-C7002-5CD, SG-S7001-8, SG-C3001Manufacturer Number:Y-33M39600

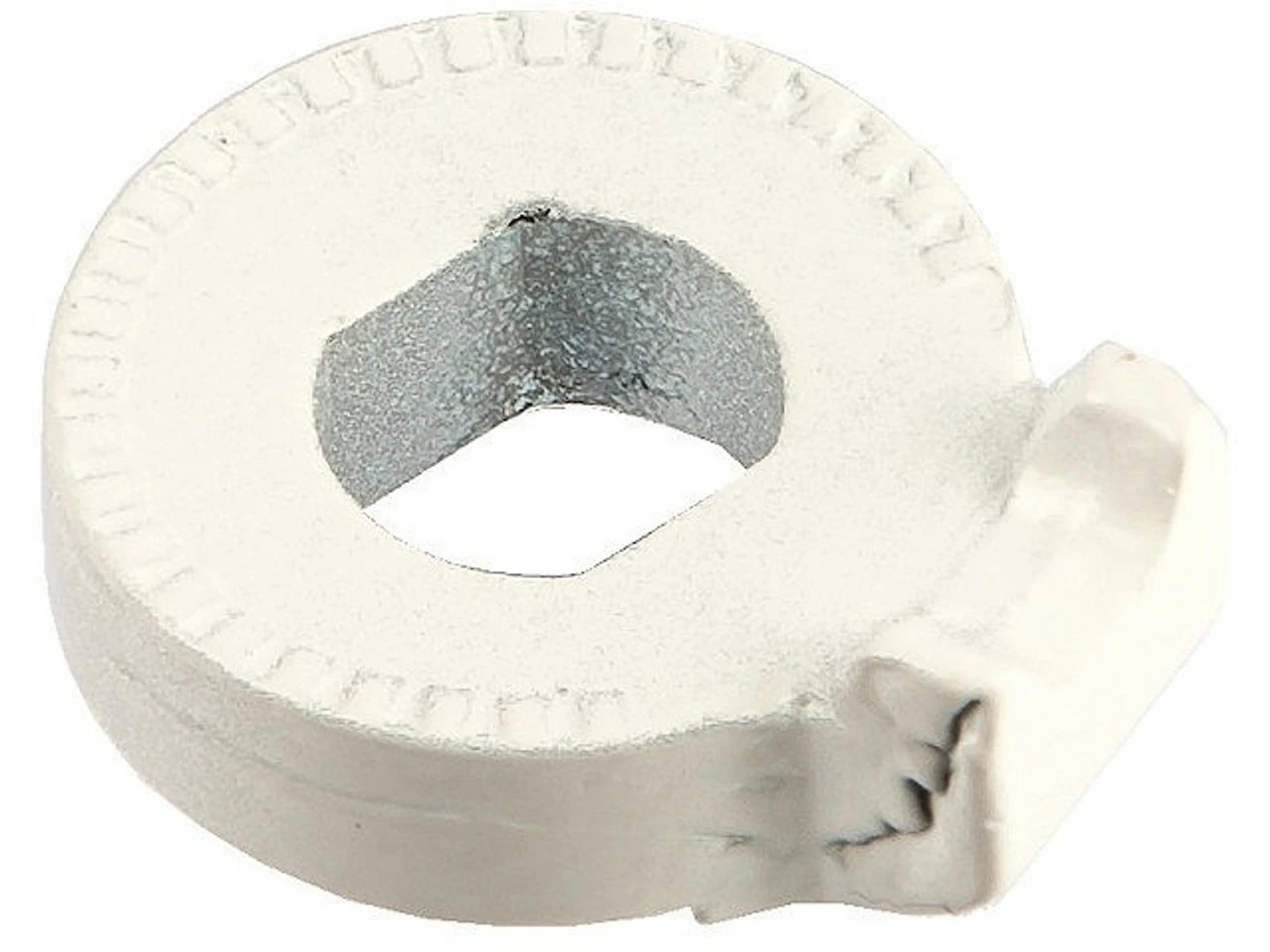

6L / white:
Use:horizontal 0°Position:leftCompatibility:SG-8R20, SG-4R40, SG-5R30, SG-5R30-BT, SG-C6060, SG-C6011, SG-C6001, SG-C6061, SG-C7000-5, SG-C7002-5CD, SG-S7001-8, SG-C3001Manufacturer Number:Y-33M39610
7R / black:
Use:semi-horizontal 20°, semi-horizontal 38°Position:rightCompatibility:SG-8R20, SG-4R40, SG-5R30, SG-C6060, SG-C6011, SG-C6001, SG-C6061, SG-C7000-5, SG-C7002-5CD, SG-S7001-8, SG-C3001Manufacturer Number:Y-33M39700
7L / grey:
Use:semi-horizontal 20°, semi-horizontal 38°Position:leftCompatibility:SG-8R20, SG-4R40, SG-5R30, SG-C6060, SG-C6011, SG-C6001, SG-C6061, SG-C7000-5, SG-C7002-5CD, SG-S7001-8, SG-C3001Manufacturer Number:Y-33M39710

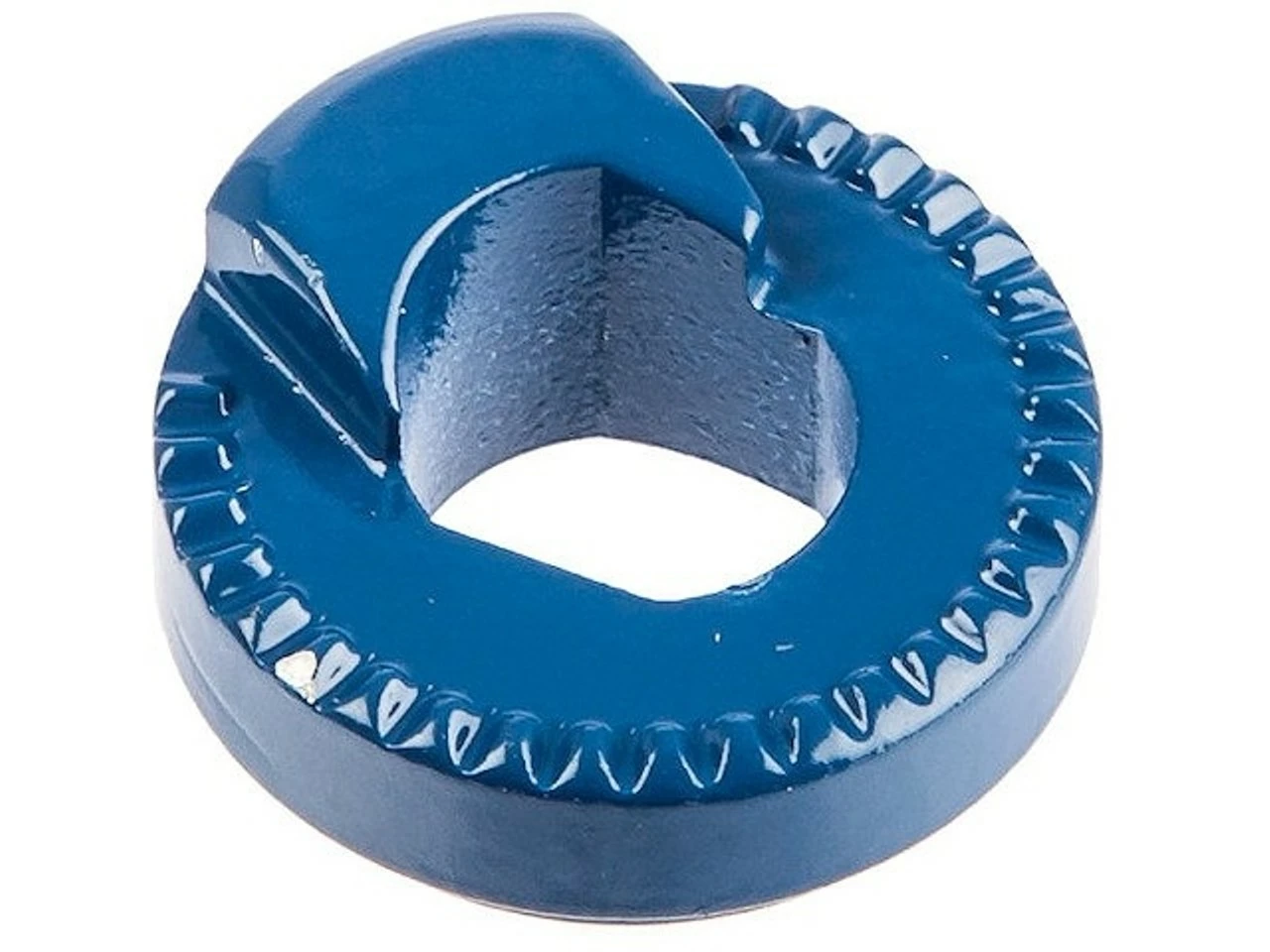

8R / blue:
Use:vertical 90°, vertical 60°Position:rightCompatibility:SG-8R20, SG-5R30, SG-C6011, SG-C6001, SG-C7000-5, SG-C7002-5CD, SG-S7051-8, SG-S7051-11, SG-C6061, SG-S7001-8, SG-S7001-11Manufacturer Number:Y-34R85010
8L / green:
Use:vertical 90°, vertical 60°Position:leftCompatibility:SG-8R20, SG-5R30, SG-C6011, SG-C6001, SG-C7000-5, SG-C7002-5CD, SG-S7051-8, SG-S7051-11, SG-C6061, SG-S7001-8, SG-S7001-11Manufacturer Number:Y-34R85000Contents:1 x Shimano anti-rotation washer
