Syntace Spare Spoke For M Wheels W/ Round Spokes

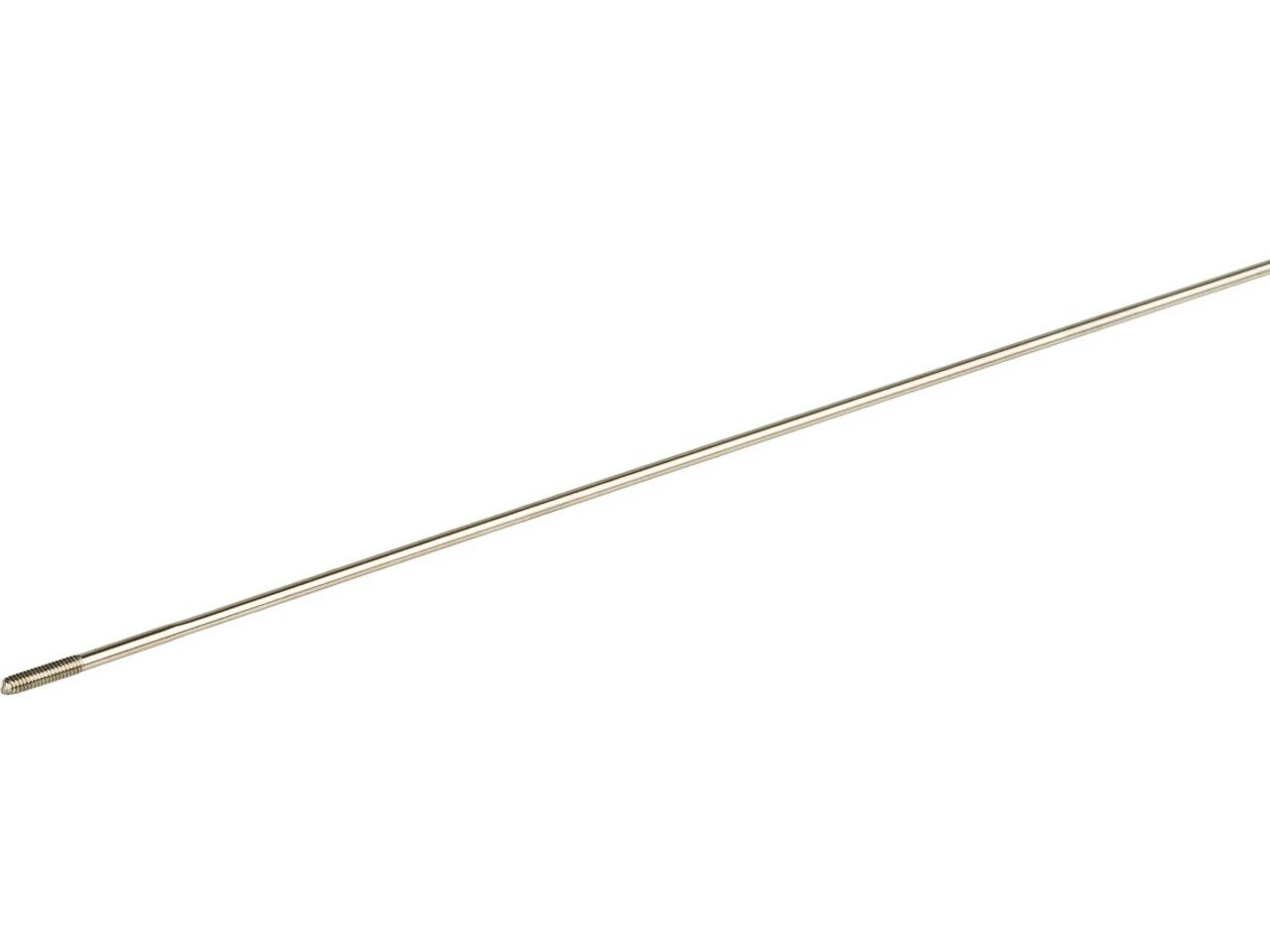

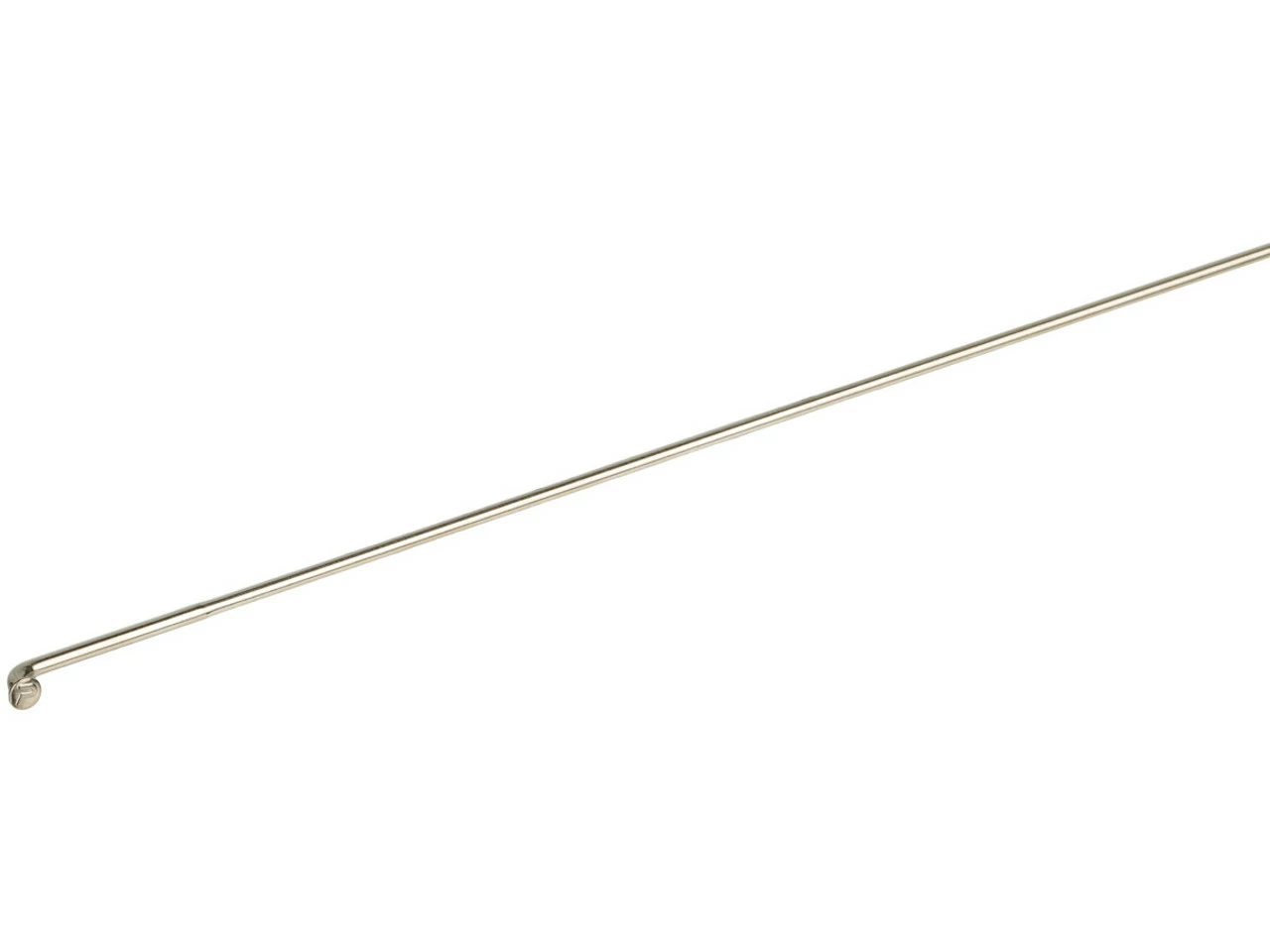

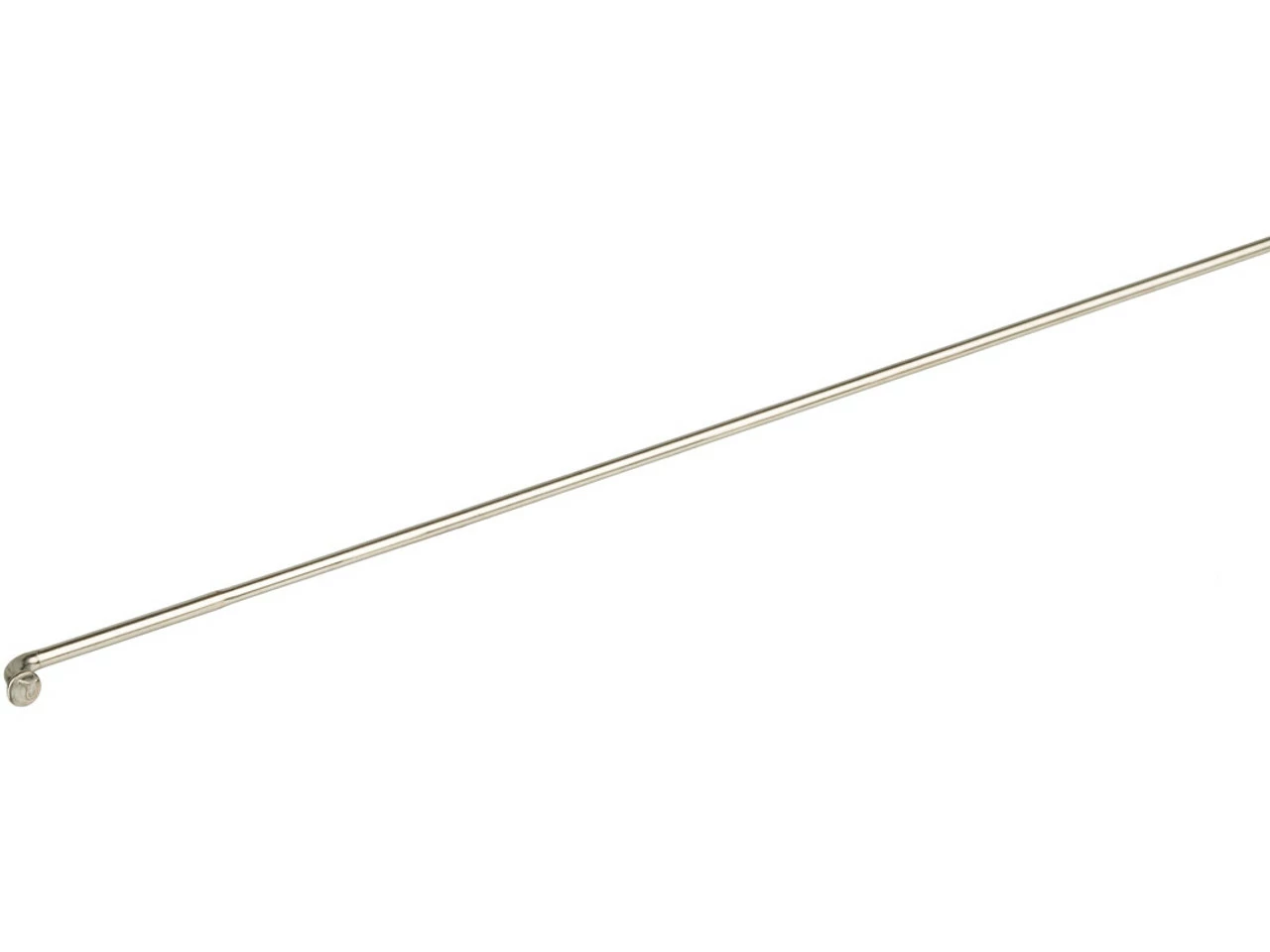

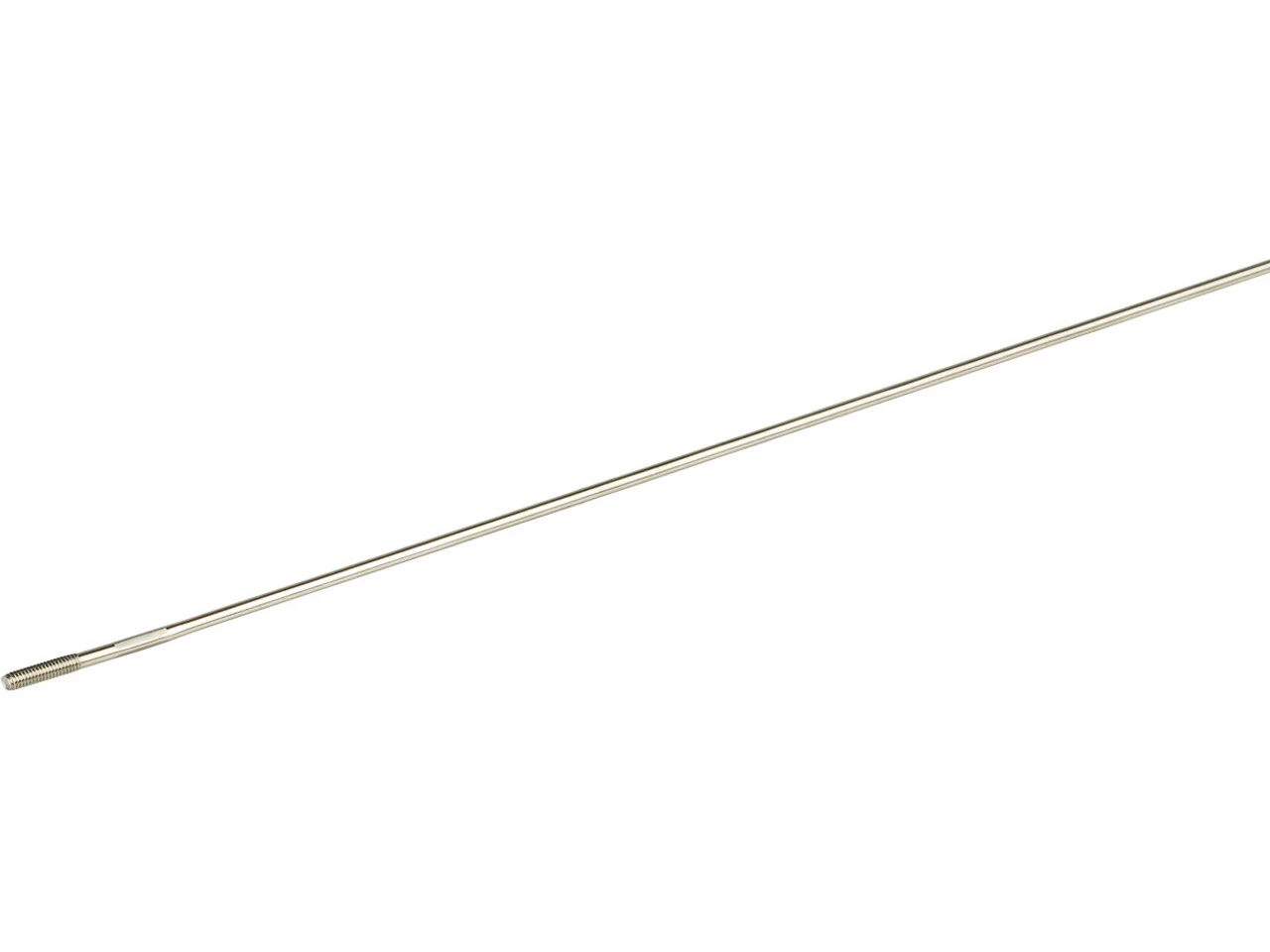

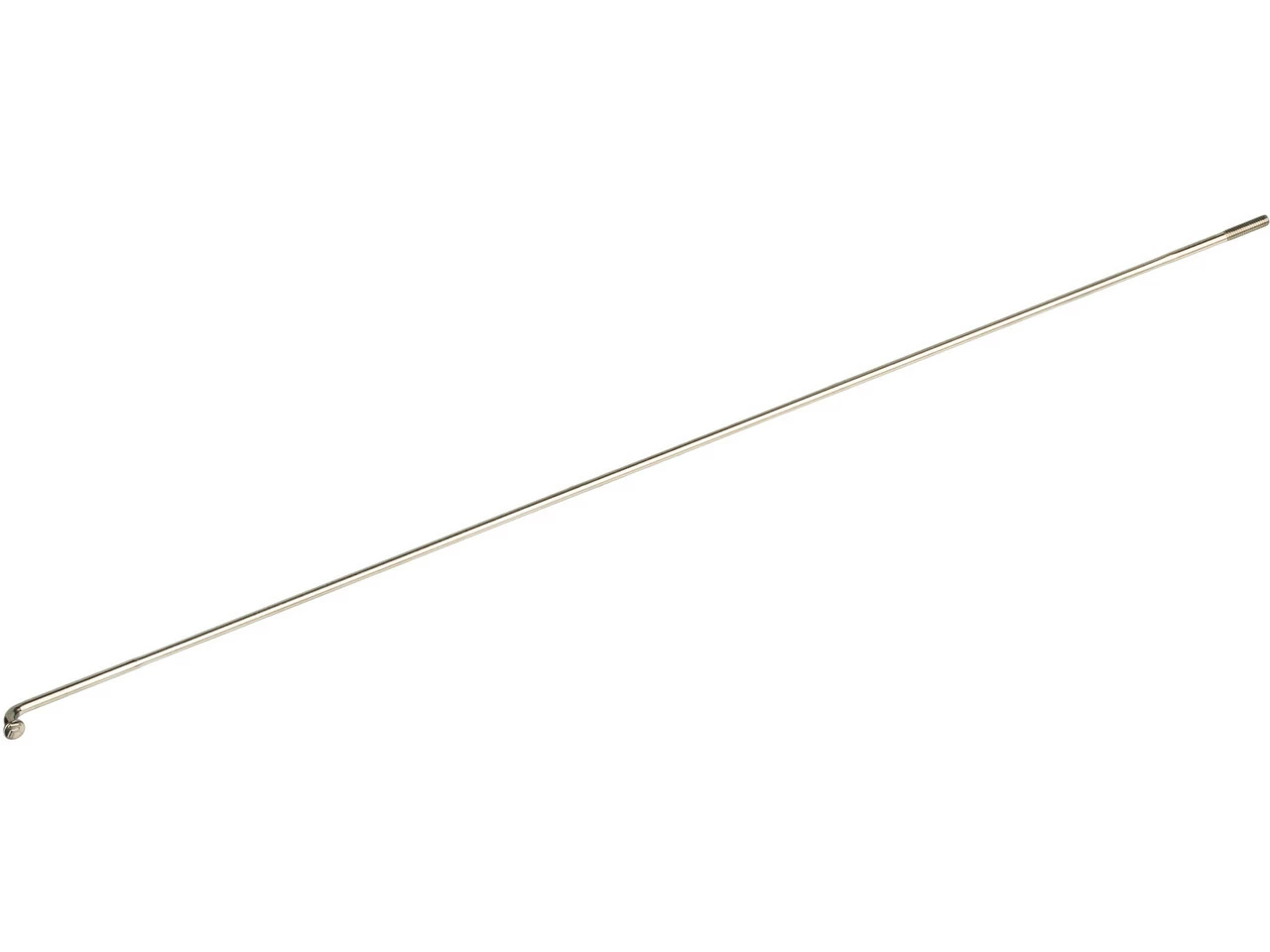

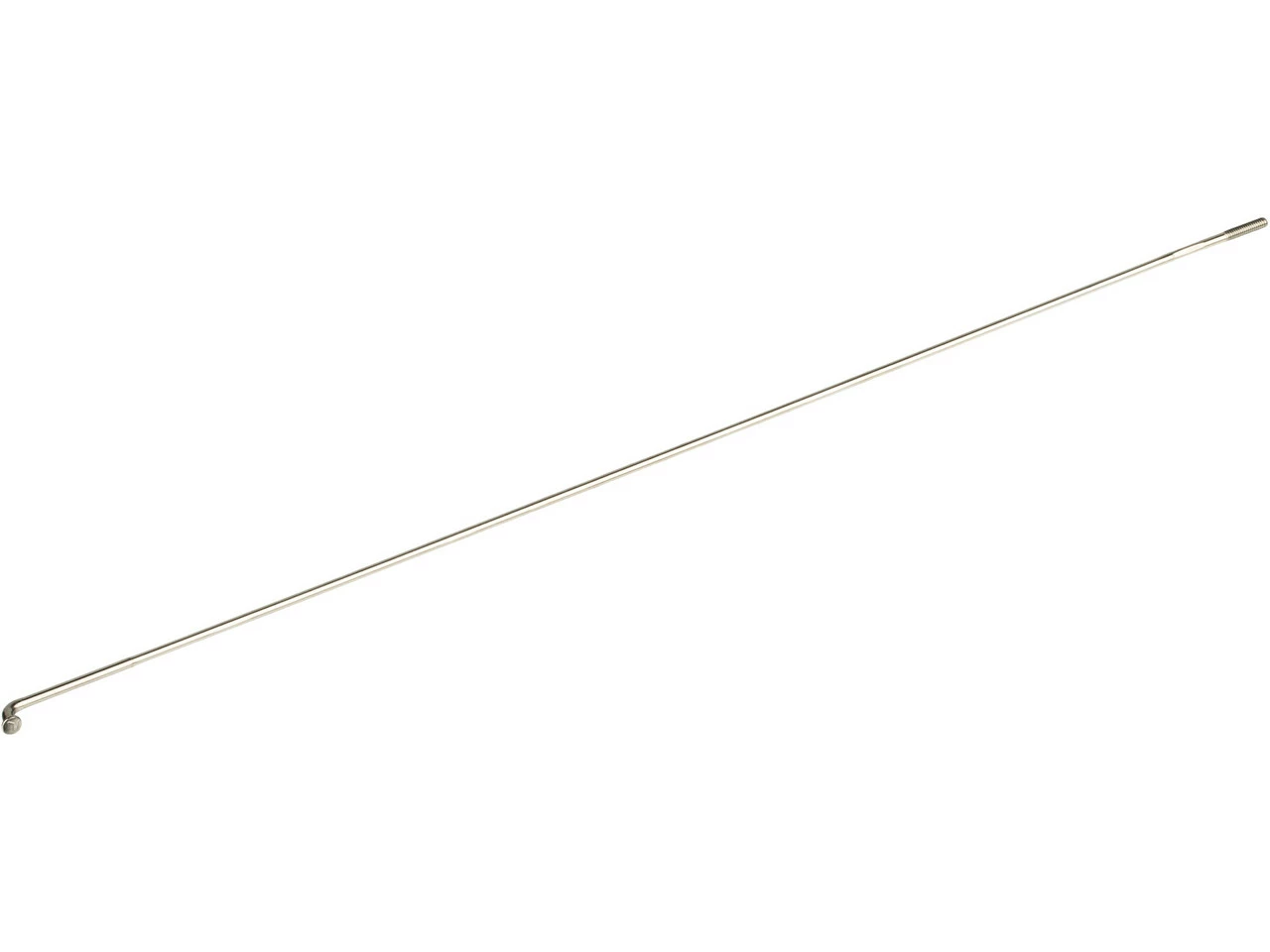

Spare spokes for Syntace M wheels with silver round spokes.
Technical Information:Type:SyntaceSpoke Type:roundSpoke Material:stainless steelSpoke Length:230 mm – 298 mmSpoke Thickness:1.8 mm
W30 M / 26″ / 28 hole
front (3-cross):
Over Locknut Dimension: 15 x 100 mm / 20 x 110 mmFront Left: 264 mmFront Right: 266 mmManufacturer Numbers: 118102 (264 mm), 118119 (266 mm), 115781 (W30 M 26″ 28 hole front)rear (3-cross):
Over Locknut Dimension: 12 x 142 mmRear Left: 266 mmRear Right: 264 mmManufacturer Numbers: 118119 (266 mm), 118102 (264 mm), 115859 (W30 M 26″ 28 hole rear)
W30 M / 29″ / 28 hole
front (3-cross):
Over Locknut Dimension: 15 x 100 mm / 20 x 110 mmFront Left: 296 mmFront Right: 298 mmManufacturer Numbers: 118218 (296 mm), 118225 (298 mm), 115835 (W30 M 29″ 28 hole front)rear (3-cross):
Over Locknut Dimension: 12 x 142 mmRear Left: 298 mmRear Right: 296 mmManufacturer Numbers: 118225 (298 mm), 118218 (296 mm), 115897 (W30 M 29″ 28 hole rear)
W35 M / 26″ / 28 hole
front (3-cross):
Over Locknut Dimension: 15 x 100 mm / 20 x 110 mmFront Left: 262 mmFront Right: 264 mmManufacturer Numbers: 118096 (262 mm), 118102 (264 mm), 115798 (W35 M 26″ 28 hole front)rear (3-cross):
Over Locknut Dimension: 12 x 142 mmRear Left: 264 mmRear Right: 262 mmManufacturer Numbers: 118102 (264 mm), 118096 (264 mm), 115866 (W35 M 26″ 28 hole rear)
W35 M / 29″ / 28 hole
front (3-cross):
Over Locknut Dimension: 15 x 100 mm / 20 x 110 mmFront Left: 294 mmFront Right: 296 mmManufacturer Numbers: 118201 (294 mm), 118218 (296 mm), 115828 (W35 M 29″ 28 hole front)rear (3-cross):
Over Locknut Dimension: 12 x 142 mmRear Left: 296 mmRear Right: 294 mmManufacturer Numbers: 118218 (296 mm), 118201 (294 mm), 115903 (W35 M 29″ 28 hole rear)
W30 M / 26″ / 32 hole
front (3-cross):
Over Locknut Dimension: 15 x 100 mm / 20 x 110 mmFront Left: 260 mmFront Right: 262 mmManufacturer Numbers: 118089 (260 mm), 118096 (262 mm), 118416 (W30 M 26″ 32 hole front)rear (3-cross):
Over Locknut Dimension: 12 x 142 mmRear Left: 262 mmRear Right: 260 mmManufacturer Numbers: 118096 (262 mm), 118089 (260 mm), 118492 (W30 M 26″ 32 hole rear)
W30 M / 27.5″ / 32 hole
front (3-cross):
Over Locknut Dimension: 15 x 100 mm / 20 x 110 mmFront Left: 272 mmFront Right: 274 mmManufacturer Numbers: 118140 (272 mm), 118157 (272 mm), 118423 (W30 M 27.5″ 32 hole front)rear (3-cross):
Over Locknut Dimension: 12 x 142 mmRear Left: 274 mmRear Right: 272 mmManufacturer Numbers: 118157 (274 mm), 118140 (272 mm), 118508 (W30 M 27.5″ 32 hole rear)
W30 M / 29″ / 32 hole
front (3-cross):
Over Locknut Dimension: 15 x 100 mm / 20 x 110 mmFront Left: 290 mmFront Right: 292 mmManufacturer Numbers: 118188 (290 mm), 118195 (292 mm), 118430 (W30 M 29″ 32 hole front)rear (3-cross):
Over Locknut Dimension: 12 x 142 mmRear Left: 292 mmRear Right: 290 mmManufacturer Numbers: 118195 (292 mm), 118188 (290 mm), 118515 (W30 M 29″ 32 hole rear)
W35 M / 26″ / 32 hole
front (3-cross):
Over Locknut Dimension: 15 x 100 mm / 20 x 110 mmFront Left: 258 mmFront Right: 260 mmManufacturer Numbers: 118072 (258 mm), 118089 (260 mm), 118447 (W35 M 26″ 32 hole front)rear (3-cross):
Over Locknut Dimension: 12 x 142 mmRear Left: 260 mmRear Right: 258 mmManufacturer Numbers: 118089 (260 mm), 118072 (258 mm), 118522 (W35 M 26″ 32 hole rear)
W35 M / 27.5″ / 32 hole
front (3-cross):
Over Locknut Dimension: 15 x 100 mm / 20 x 110 mmFront Left: 270 mmFront Right: 272 mmManufacturer Numbers: 118140 (270 mm), 118133 (272 mm), 118454 (W35 M 27.5″ 32 hole front)rear (3-cross):
Over Locknut Dimension: 12 x 142 mmRear Left: 272 mmRear Right: 270 mmManufacturer Numbers: 118133 (272 mm), 118140 (270 mm), 118539 (W35 M 27.5″ 32 hole rear)
W35 M / 29″ / 32 hole
front (3-cross):
Over Locknut Dimension: 15 x 100 mm / 20 x 110 mmFront Left: 290 mmFront Right: 292 mmManufacturer Numbers: 118188 (290 mm), 118195 (292 mm), 118461 (W35 M 29″ 32 hole front)rear (3-cross):
Over Locknut Dimension: 12 x 142 mmRear Left: 292 mmRear Right: 290 mmManufacturer Numbers: 118195 (292 mm), 118188 (290 mm), 118546 (W35 M 29″ 32 hole rear)
W40 M / 26″ / 32 hole
front (3-cross):
Over Locknut Dimension: 15 x 100 mm / 20 x 110 mm (118478)Front Left: 254 mm (118058)Front Right: 256 mm (118065)Manufacturer Numbers: 118058 (254 mm), 118065 (256 mm), 118478 (W40 M 26″ 32 hole front)rear (3-cross):
Over Locknut Dimension: 12 x 142 mmRear Left: 256 mmRear Right: 254 mmManufacturer Numbers: 118065 (256 mm), 118058 (254 mm), 118553 (W40 M 26″ 32 hole rear)
W40 M / 27.5″ / 32 hole
front (3-cross):
Over Locknut Dimension: 15 x 100 mm / 20 x 110 mmFront Left: 268 mmFront Right: 270 mmManufacturer Numbers: 118126 (268 mm), 118133 (270 mm), 118485 (W40 M 27.5″ 32 hole front)rear (3-cross):
Over Locknut Dimension: 12 x 142 mmRear Left: 270 mmRear Right: 268 mmManufacturer Numbers: 118133 (270 mm), 118126 (268 mm), 118560 (W40 M 27.5″ 32 hole rear)Contents:1 x Syntace M series spoke
